Project Specification

The project of the present course will aim to use a (very very) simplified car and applying what learned in the lectures to a “real” use case. _{(Source: https://cdn.motor1.com/images/mgl/rKoeb9/s1/la-peugeot-104-peugette-con-un-solo-sedile.jpg)}

You are going to build a system composed by:

injection system controller¹
car infosystem
wipers
proximity sensor²
vehicle health analysis

¹: it is a simple car but still holding a working engine
²: we do not like paying high insurance fees because we run over pedestrians, do we?

The car simulator

Our car simulator implements the following behaviors:

It is made of a mix of periodic / aperiodic tasks.
Tasks may access shared resources and thus dependent of each other.
Some tasks have hard real-time constraints, so you have to show that these constraints are met.
The software is implemented using safety features, as explained in the related codelabs.

Phases

The software will be implemented in several phases as listed below. The deadlines for delivering the deliverables of each phase are described in the plan. The deliverables must be made available as defined in the project organization section

Once the infrastructure of the project is setup, the phases of the project are:

Setting up the infrastructure of the project (Phase 0).
Simulation and implementation of independent periodic tasks (Phase A).
Integration of aperiodic tasks (Phase B).
Integration of shared resources among tasks and of safety concepts (Phase C).

All phases contain deliverables detailed in each section below.

Phase 0: Setting up of the infrastructure

Once you have completed the Scheduling of periodic tasks codelab and the Robust Development Methodologies codelab, the basic infrastructure for starting the project will be in place. Use the code base Scheduling of periodic tasks codelab as base for your GitHub repository whose name is TeamName-car-sim.

Warning

Make sure all code written by you does follow MISRA as well as Google’s10 C++ Style guidelines.

Phase A: Periodic tasks

The car simulator must implement the following periodic tasks:

Task	Function	WCET [ms]	Period [ms]
Engine	Performs car engine checks periodically	10	50
Display	Displays car information	15	125
Tire	Performs tire pressure checks	10	200
Rain	Performs rain detection	25	250

Phase A Deliverables

Based on the instructions in the Scheduling of periodic tasks codelab, you must:

Expected Deliverables and Additional Requirements

Demonstrate that this set of tasks is feasible using RMA and simulate this set of tasks.
- Deliverable: the README.md file at the root of the project must contain the demonstration of the schedulability of the task set by the Rate Mononotic Algorithm and a screenshot of the results obtained using the simulator. You must also upload the simulator configuration file in json format onto your repository.
Implement this set of tasks with a multi-tasking program using Zephyr RTOS.
- Requirement: All written code shall follow the project structure described in the Getting Started codelab using the T3 forest topology.
- Requirement: All the work is done on a dedicated git branch named phase_a and merged once the tasks are completed. The merge shall happen through a Pull Request (PR) so as to ensure proper code review (so, do not forget to add a reviewer 😉)
- Requirement: The phase between the different tasks must be $0$, meaning that the start of the period of the first instance of all tasks is the same.
- Requirement: As in the related codelab, computing time must be implemented using a busy wait (e.g. by using the zpp_lib::ThisThread::busy_wait() function).
- Requirement: Each task is implemented as documented in the Scheduling of periodic tasks codelab.
- Requirement: The application is delivered with logging disabled and ready for tracing. Assertions are enabled.
- Requirement: All written code shall follow MISRA C++:2023 guidelines as seen in the course. For this purpose, you must apply all code analysis and all possible fixes to your source code as described in related Robust Development Methodologies - Formal codelab and related Robust Development Methodologies - SW quality codelab.
  Note: obviously only the rules defined as applicable are to be checked.
- Requirement: the project shall have a pipeline covering pre-commit and misra_checker as per Robust Development Methodologies - Formal.
  Note: obviously only the rules defined as applicable are to be checked.
- Deliverable: A screenshot of the dynamic analysis of your program using SEGGER SystemView must also be added to the README.md. Note that it is expected that dynamic analysis results show the same application behavior as modeled and simulation analysis.
- Deliverable: The data collected using the SEGGER SystemView tool is saved in a phase_a.csv file that is uploaded to the root of your GitHub repository, with the following requirements:
  - The README.md file documents the statistical analysis of the data and shows that the period and computation times are as expected, with a tolerance of $0.2 ms$.
  - You must use v1.3 of the csv_marker_parser_with_preemption.py python script.
  - To validate your implementation, you must use a command similar to python csv_marker_parser_with_preemption.py phase_a.csv --marker 0 --task Engine --period-ms 50 --max-exec-ms 10.1 --marker 1 --task Display --period-ms 125 --max-exec-ms 15.1 --marker 2 --task Tire --period-ms 200 --max-exec-ms 10.1 --marker 3 --task Rain --period-ms 250 --max-exec-ms 25.2 --tolerance-period-start-ms 0.1.
  - The tolerance-period-start-ms parameter may need to be adapted to your specific experiments, but it should not exceed $1 ms$. The exact command line used for running the script must be documented in the README.md file, together with the the statistical analysis results.
- Deliverable: the source code of your application in your github repository with the tag/release PhaseA.

Solution

50/125/200/250 | 10/15/10/5

Major Cycle = $ppmc(T_{1}, T_{2}, T_{3}, T_{4}) = 1000ms$
Upper bound is $4 * (2^{(\frac{1}{4})} - 1) \approx 0.757$
$\sum_{1}^{4}(\frac{C_i}{T_i}) = \frac{1}{5} + \frac{3}{25} + \frac{1}{20} + \frac{1}{10} \approx 0.47$

Solution

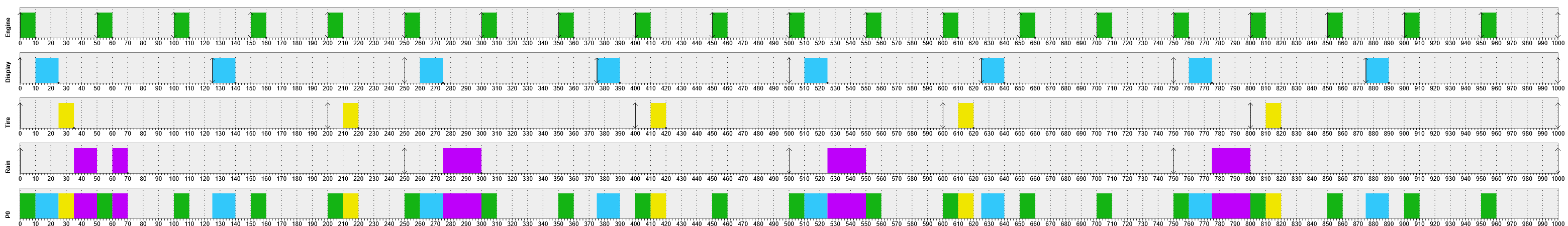

Output of SimSo simulation for the set of periodic tasks

Solution

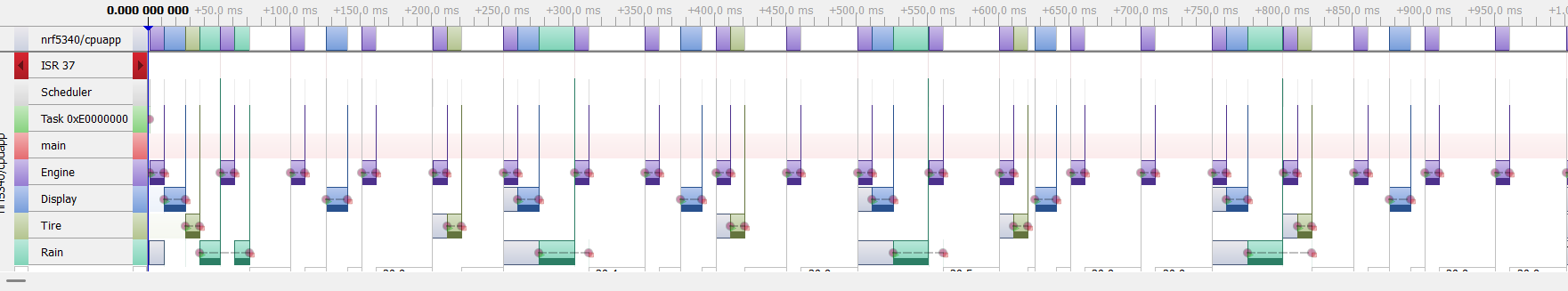

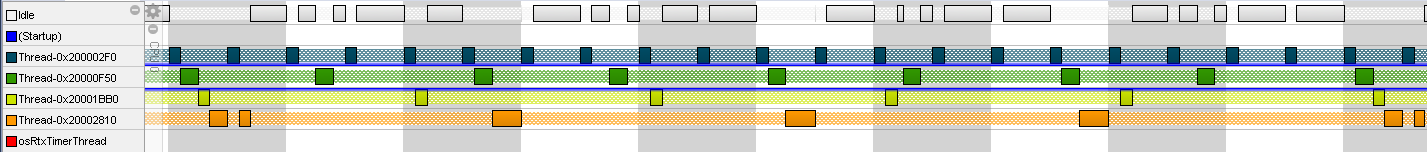

SystemView Output for the set of periodic tasks

Phase B: Mix of periodic and aperiodic tasks

Ensuring quality

Before addressing the details about new functionality of Phase B, let us consider ensuring good product quality. A good practice for developing qualitatively good products is to only develop new functionality on dedicated branches so as to preserve the main branch from undesired consequences (for instance, a new instance introducing instabilities).

For doing so systematically, one would protect the main branch - that is, one cannot commit to main directly any longer but is obliged to create a specific branch and then merge changes into main after checks have been passed. Those checks can be mechanical (automated tests) as well as humans (code reviews). So, for Phase B you will use this already and to activate the protection you will need to :

In order to protect the quality of the main branch, usually this is protected. Protected in this context means that no changes are accepted without application of the four eye principle (see at the bottom of the page for a definition).

In order to activate the protection, you need to :
- go to your repository Settings and click on Branches
- there you need to choose Branch protection rules and Add rule
- once the Add rule page opens up, fill in the information as per the following picture: Although not in the picture, one may add more checks to this stage (e.g. “Require status checks to pass before merging”)
When are finished, you should be able to see the following:
Once a fix is available, you shall create a Pull Request
When you are creating the pull request, you shall define at least one reviewer. Normally, at least the issue issuer shall be invited to review the correction.
After the reviewer has approved the change, for as long as there are no conflicts, the merge can occur into main. It can even do automatically if one chooses so (Enable auto-merge).

Warning

Once branch protection is installed, this needs to be respected for bug fixing as well. Not only is this good practice (see Note 2 of Robust Development Methodologies(II)), but it also works for everyone - contrary to bypassing branch protection that only works for administrators.

Phase B features

The goal of Phase B is to implement a system with three components, as illustrated below:

The set of periodic tasks described in the Phase A section is executed using the Rate Monotonic scheduling algorithm.
Given this set of periodic tasks, a Deferrable Server task is added to the system. The period of this task is chosen so that the schedulability of the entire set of periodic tasks is preserved. Note that while sporadic tasks may usually be rejected by an acceptance test, we do not implement this behavior in this project. This code is enabled/disabled with the CONFIG_APERIODIC_TASKS configuration option.
A system and task watchdogs are added to the project. All tasks (except the idle task) are to be monitored. The timeout values correspond to the deadline specified for each task. For tasks not having a real time constraints, use 1 second as timeout value. In addition, reset reason is retrieved and the number of watchdog triggered resets is recorded. All tasks violating the refreshing time requirement shall print a corresponding error
```
[00:00:00.250,305] <err> car_system: Reboot Cause: WATCHDOG RESET (35 times in a row)
```
This code is enabled/disabled with the CONFIG_APP_WATCHDOG option.
A background task is also added to the system. This task executes with the smallest priority among all application tasks.

In addition to the periodic tasks, the car simulator must also implement the following aperiodic tasks:

Task	Function	WCET [ms]
Presence detection (PD)	Sensor detecting presence nearby the vehicle	50
Search for peripheral devices (SPD)	Detect nearby devices	200

The properties of the two aperiodic tasks are as follows:

The presence detection (PD) task is a sporadic task. It must be served through a deferrable server and the server shall be implemented as per the related codelab.
The presence detection (PD) task arrives at the following times in each major cycle :
$t = {60, 300, 630, 900}$.
Generation of sporadic requests shall be implemented as described here, with the appropriate changes for generating aperiodic requests continuously.
The search for peripheral devices (SPD) task must be served as a background task. It shall be implemented as in the related codelab.

Phase B Deliverables

Based on the instructions above, you shall comply to the following:

Expected Deliverables

Requirement: All written code shall follow the project structure described in the Getting Started codelab using the T3 forest topology.
Requirement: The application is delivered with logging disabled and ready for tracing. Assertions are enabled. To validate timing requirements (using the Python script as described below), watchdog mechanisms must be disabled.
Requirement: The main branch shall be protected and all changes are added to it through Pull Requests
Requirement: All written code shall follow MISRA C++:2023 (as per rules defined) as well as Google’s C++ Style guidelines.
Deliverable: The source code of your application in your github repository with the tag/release PhaseB and the work on new features realized on a dedicated branch named PhaseB_Features.
Deliverable: The code implements a deferrable server and the background task processing as per the related codelab. This code is enabled with the CONFIG_APERIODIC_TASKS=y option.
Deliverable: Reset reason, retained memory, system watchdog and task watchdogs for all tasks as per related codelab are implemented. This code is enabled using the Zephyr RTOS configuration options as documented in the codelab - Make sure the activation of watchdogs, reset reasone and retain memory subsystems follows what is indicated in the codelab.

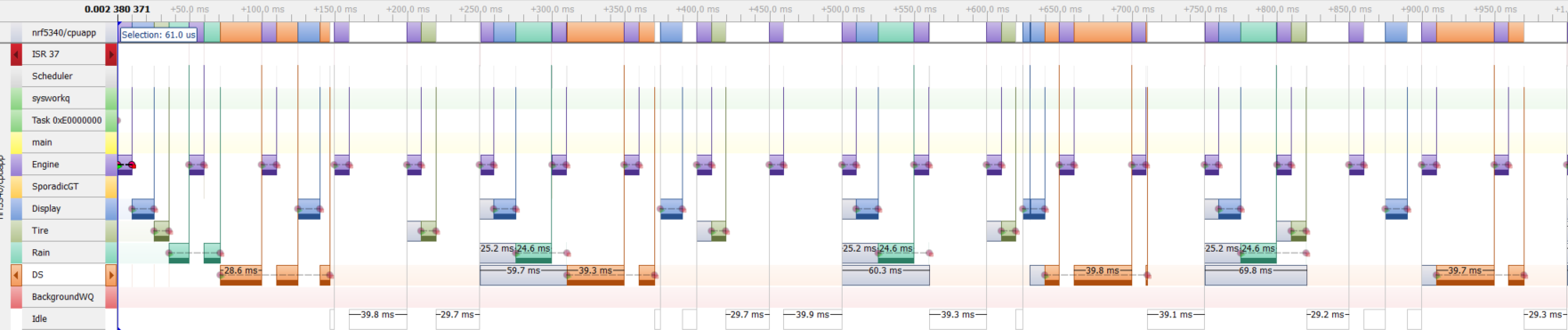

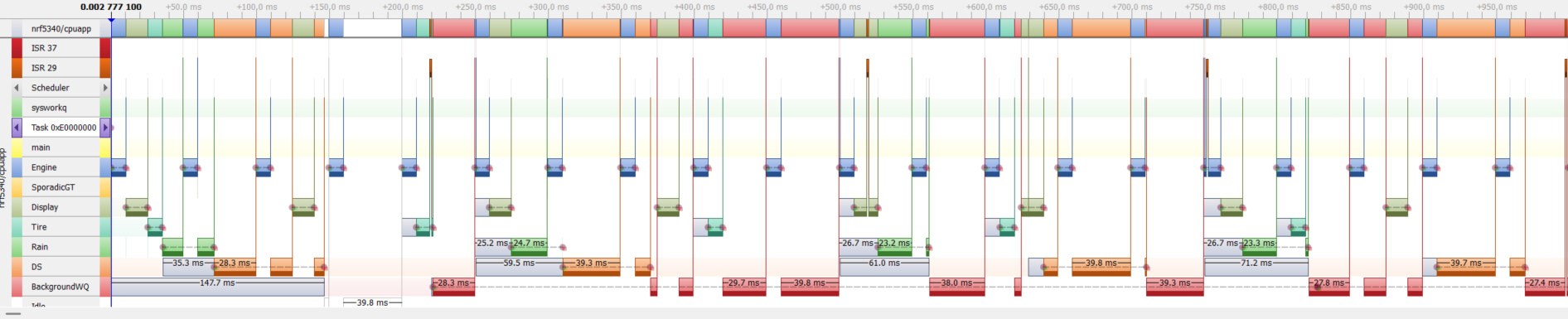

Deliverable: A screenshot of the dynamic analysis of your program using SEGGER SystemView must be added to the README.md.
Deliverable: The data collected using the SEGGER SystemView tool is saved in a phase_b.csv file that is uploaded to the root of your GitHub repository, with the following requirements:
- The README.md file documents the statistical analysis of the data and shows that the period and computation times are as expected, with a tolerance of $0.2 ms$. This bound may be adapted but it should not exceed $0.5 ms$.
- You must use v1.3 of the csv_marker_parser_with_preemption.py python script.
- To validate your implementation, you must use a command similar to python car_system/csv_marker_parser_with_preemption.py car_system/phase_b.csv --marker 0 --task Engine --period-ms 50 --max-exec-ms 10.2 --marker 1 --task Display --period-ms 125 --max-exec-ms 15.2 --marker 2 --task Tire --period-ms 200 --max-exec-ms 10.2 --marker 3 --task Rain --period-ms 250 --max-exec-ms 25.2 --marker 4 --task DS --period 250 --max-exec-ms 50.5 --tolerance-period-start-ms 0.7.
- The tolerance-period-start-ms parameter may need to be adapted to your specific experiments, but it should not exceed $1 ms$. The exact command line used for running the script must be documented in the README.md file, together with the the statistical analysis results.
Deliverable: The analysis made for determining the smallest possible $T_{S}$ that guarantees schedulability of the set of periodic tasks with the deferrable server task is added to the README.md file.
Deliverable: All bugs reported as issues to your github repository for Phase A must be fixed, following the guidelines described in Bug Fixes from Phase A.

Bug Fixes from Phase A

After you delivered the Phase A of the project, a few issues related to your project have been created. These will need to be fixed within Phase B.

Note

Make sure to follow the rules presented in Write Better Commit Messages. That is, put fix: as type of your commits.

Obviously, setting the right type is valid for all commits, not just bug fixes.

In order to fix issues orderly, the proper way to do so is to create a dedicated branch per issue and only commit the fix(es) related to that issue on that branch. Once the fix is made available and approved, the branch created for that purpose is deleted. Below you find a description how you shall go about it.

Under the github project you created, under Issues, chose the issue you intend to address and :

Define who the issue is assigned to with the field Assignees
Declare what type of issue it is Labels (note: choose the correct type)
Potentially define at what milestone the issue should be fixed. In your case add Phase B as milestone

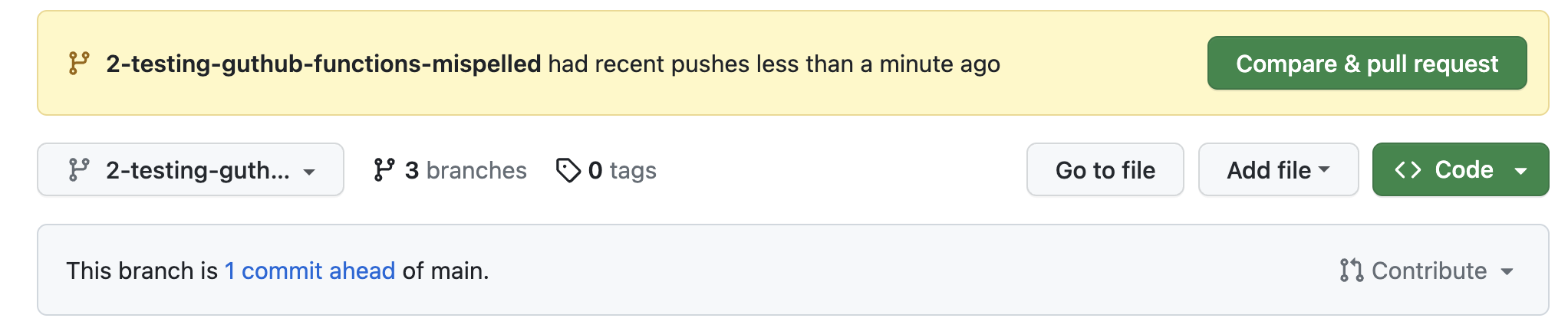

Create a dedicated branch for fixing the particular issue Afterwards you can pick the newly created branch to fix the issues with the following commands
```
  git fetch origin
  git checkout 2-testing-guthub-functions-mispelled
```
Go about fixing the issue and commit to the newly created branch
```
  git add README.md
  git commit -m "fix: corrected github mispell"
```
Or (as the example was fixed directly in github)
When the merge has been done, you should delete the specific branch created for fixing the issue (see Delete branch in picture below)

Note

Make sure you replace 2-testing-guthub-functions-mispelled in the example above with the correct branch when you run above commands.

Quote - Four eyes principle

The Four eyes principle is a requirement that two individuals approve some action before it can be taken. The Four eyes principle is sometimes called the two-man rule or the two-person rule.

Source: https://cros-legacy.ec.europa.eu/content/four-eyes-principle_en#:~:text=The%20Four%20eyes%20principle%20is,or%20the%20two%2Dperson%20rule

Phase C: Adding dependencies and robustness

Adding twister tests

Until now, scheduling accuracy has only been verified using tracing and statistical analysis of results. This method is useful during the initial conception and early development phases. However, it is also important to build a fully automated test framework that validates scheduling correctness. For this project, the test framework is provided, and you only need to integrate it into your application to validate scheduling. The required steps are as follows:

Integrate the TaskRecorder class into your CarSystem application.
When CONFIG_TEST is enabled (and only when enabled);
- Add an instance of the TaskRecorder class for each task in the CarSystem implementation.
- Initialize all TaskRecorder instances properly in the CarSystem constructor initializer list.
- If you are using the zpp_lib::Barrier to synchronize threads at startup, then modify the calls to zpp_lib::Barrier::wait() using _barrier.wait(&TaskRecorder::set_zero_time)). This is necessary for passing the zero time to all TaskRecorder instances, similarly to what was done when collecting application traces.
- Add calls to TaskRecorder::start()/stop() at the same place as calls to SEGGER_SYSVIEW_MarkStart()/MarkStop().
Integrate the test program into your car_system/tests folder.
Verify that your implementation passes the tests by running the west twister -T car_system/tests/timing --test-pattern car_system.timing.phase_[ab]$ --device-testing --hardware-map my_map.yaml command. Note that this assumes that your target board is configured and that you created a my_map.yaml file for your specific board.
If you encounter issues while testing, you can compile each test program separately. For example, you can use the command west build car_system/tests/timing -t car_system.timing.phase_a. Then, you can run the program separately on the board. Note that adding any logging will break scheduling, causing all tests to fail. If you encounter scheduling issues, you will need to understand the problem by examining the trace using SEGGER SystemView.
Once the tests pass using your board, you need to update your CI/CD workflow. Modify the twister.conf.json file by adding a "tags" key “"tags": ["phase_a", "phase_b"] at the same level as the "tests" key. You also need to update the twister.yaml workflow definition.

Phase C Deliverables

Expected Deliverables

Requirement: All written code shall follow the project structure described in the Getting Started codelab using the T3 forest topology.
Requirement: All written code shall follow MISRA C++:2023 (as per rules defined) as well as Google’s C++ Style guidelines.
Requirement: The scheduling behaviors described in the Task Dependencies and Priority Inversion codelab can be reproduced by building the CarSystem application with the configuration parameters CONFIG_PERIODIC_TASKS=y and CONFIG_PRIORITY_INVERSION=y.
Requirement: The application has activated the PROD_CONSUMER_INTEGRATED, CONFIG_USERSPACE=y as well as APP_WATCHDOG=y. With this configuration you shall ensure that the task watchdog, for the tasks Engine and Tire, acts so as to ensure the tasks do get time slice within the defined period. In addition, the System Watchdog shall intervene if no refresh is granted within 500 ms.
Deliverable: The source code of your application in your github repository with the tag/release “PhaseC”. It includes code developed in the Task Dependencies and Priority Inversion codelab.
Deliverable: Your CarSystem implementation passes the tests as described above, and a successful workflow run is shown in your repository.
Deliverable: The solution to the exercise 1 of the Task Dependencies and Priority Inversion codelab is added to the README.md file.
Deliverable: The solution to the exercise 2 of the Task Dependencies and Priority Inversion codelab is added to the README.md file.
Deliverable: all bugs reported as issues to your github repository for Phase B must be fixed on a dedicated branch and merged into main afterwards.

Important

DO NOT DELETE the branch until the fix has been verified by the issue writer. Doing so makes the review by the issue writer much more difficult.
